Product Overview
One Camera. Multiple Applications.
The DP75 digital microscope camera is a high-performance, multi-application imaging tool that makes it easy to capture high-resolution brightfield or fluorescence images using a single camera. It simplifies your microscopy imaging, so you can focus more on your work.
Sharper Microscopy Images, Clearer Insights
The DP75 camera makes it easier than ever to capture sharp, low-noise images. Its exceptional color reproduction makes your images as vivid as looking through the microscope oculars.

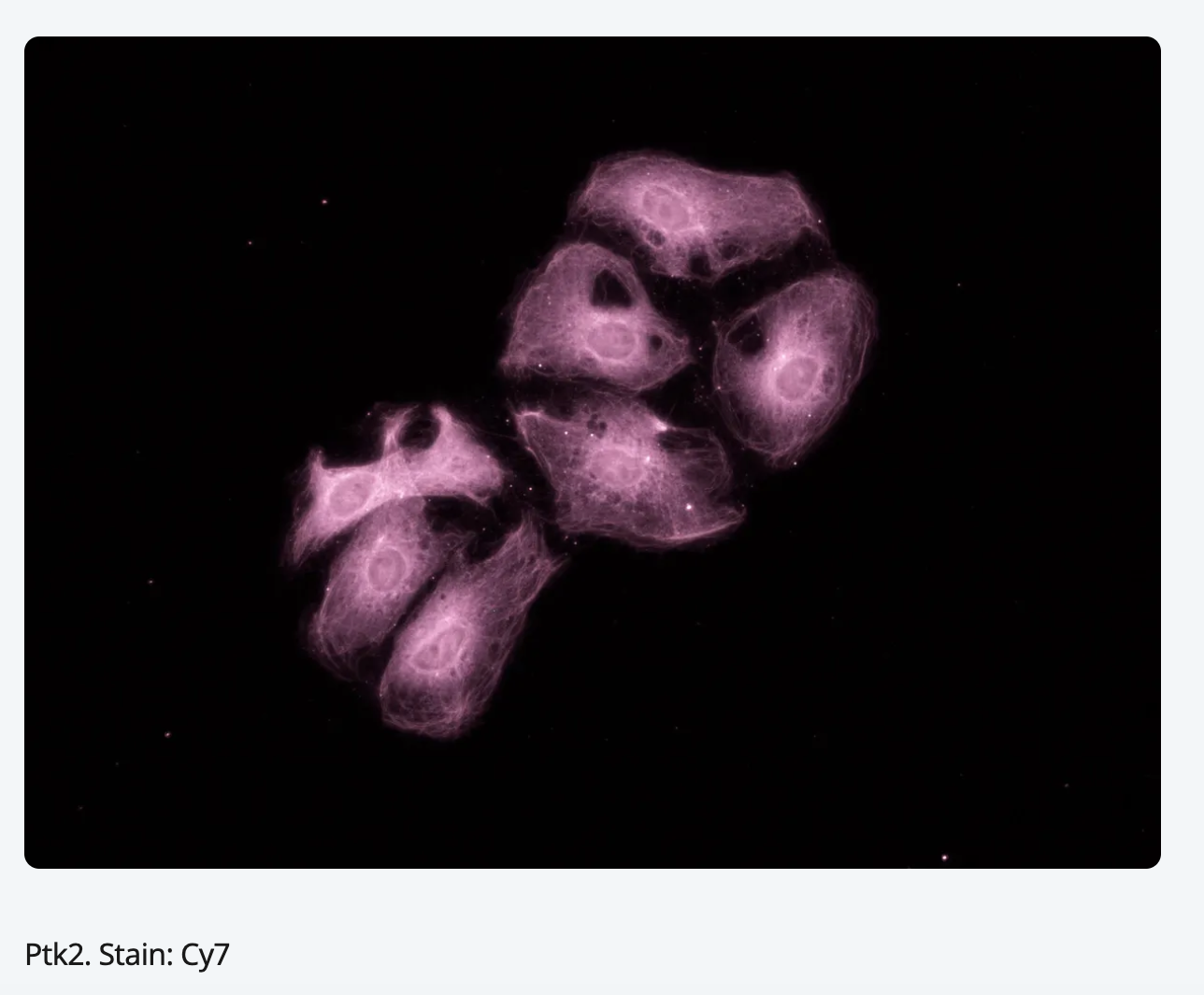

Infrared Fluorescence Imaging
The DP75 camera supports multiple staining combinations and wavelengths up to 1000 nm with a switchable infrared (IR) cut filter. This setup enables you to—for example—check your sample conditions with your standard widefield microscope before spending time on a confocal microscope to finalize your imaging.

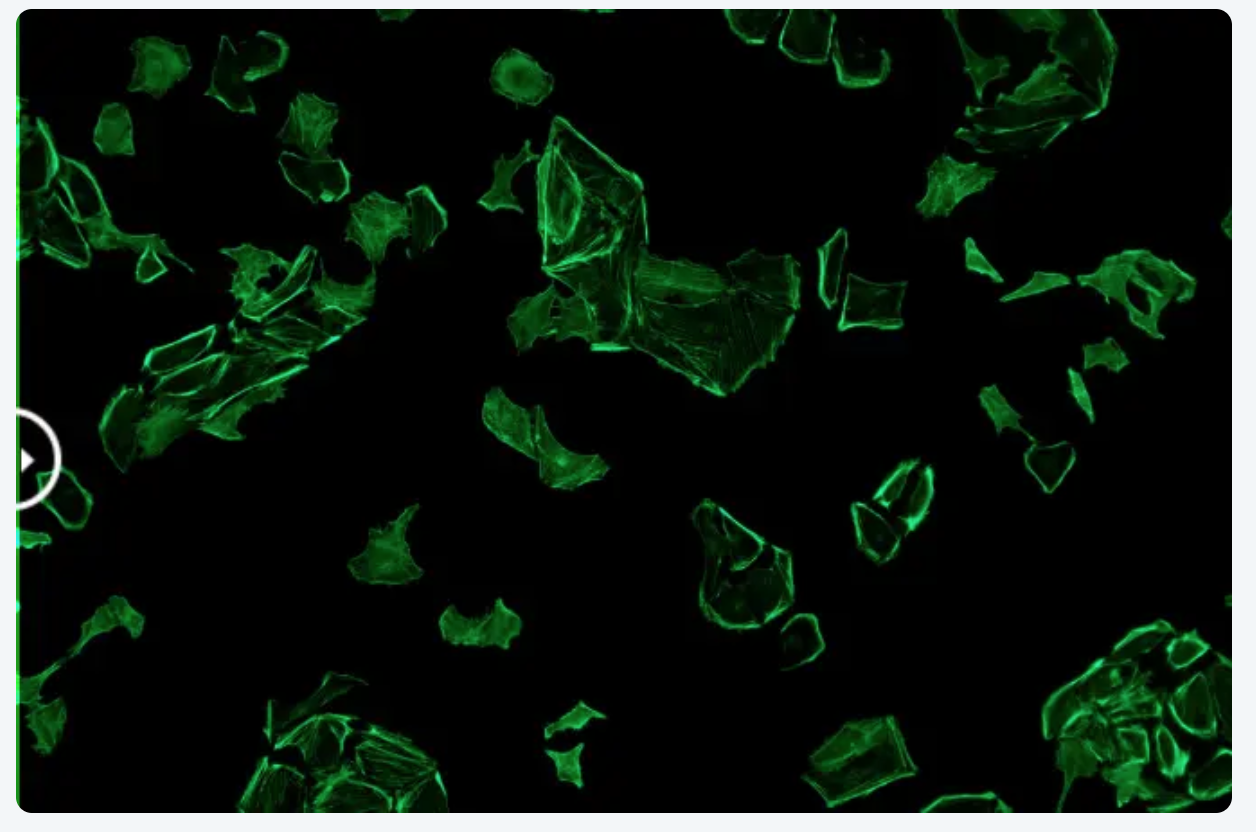

Qualitative Analysis Capabilities
Dive deeper with the camera’s advanced analysis capabilities.
- Linear mode enables relative intensity evaluation on a fluorescence image so that you can quantitatively compare the intensity of fluorescence expressions.
- Easily overlay fluorescence and brightfield images with pixel precision since you are using the same sensor for brightfield and fluorescence. Precisely identify the location of fluorescent expression, helping you focus on the relevant morphology and localization of your specimen.
Smart Observation Detection
The AI-based scene detection feature automatically recognizes five observation methods (brightfield, fluorescence, phase contrast, differential interference contrast, and polarization), enabling anyone to obtain high-quality images with minimal training.
The DP75 is not for clinical diagnostic use.
Fast Frame Rate
When imaging live specimens, a fast frame rate is important for efficiency and capturing the dynamics of your samples. With a fast frame rate of 22 frames per second (fps) at over 4K resolution and 60 fps at full HD resolution, the camera provides smooth, fast, live images for easy framing and comfortable live observation.

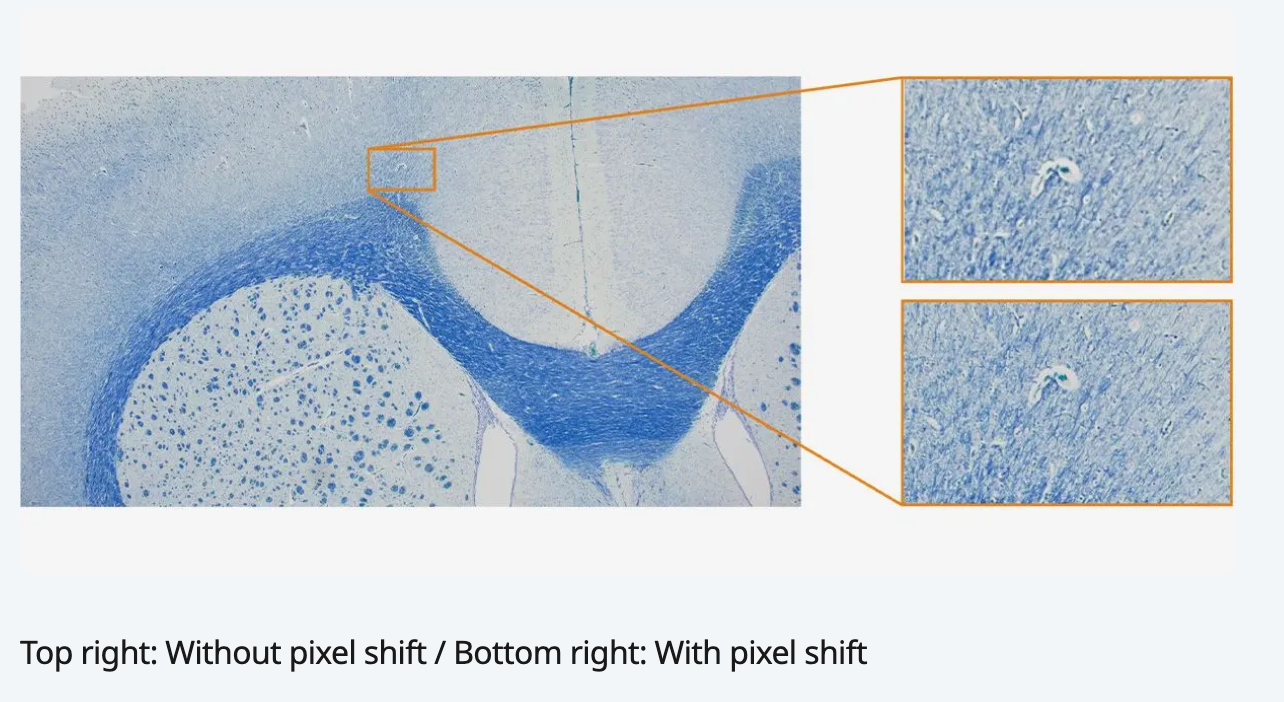

High-Resolution, Wide Field of View Imaging
The camera's wide field of view capabilities enable you to find your target areas quickly, making your research more efficient. The DP75 camera also enables you to capture high-resolution images even at low magnification with a maximum resolution of 8192 × 6000 through pixel shifting modes.
Multiple Image Alignment (MIA) Capabilities
The instant multiple image alignment (MIA) function simplifies the creation of wide-area images by moving the XY stage manually without any motorized setup, and the integrated position navigator helps ensure that you always know your position on the sample during brightfield and fluorescence imaging.
